The Illusive Crane - Syringe Version
GO TO PNUEMATIC VERSION

This crane elevates from 16" off the ground to 11' in the air,
with full lift, tilt and pan control.
(click for larger images) see video clips from dolly and crane shots

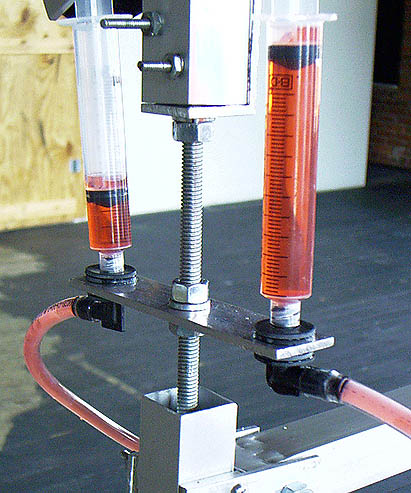

Improvement on connections
Higher Center of Gravity improvement
sample schematic from plans

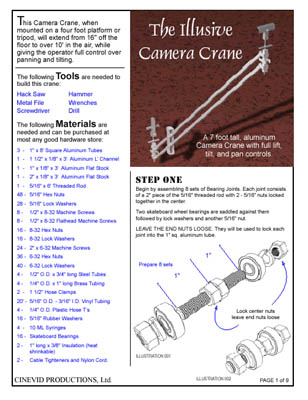

Sample page from plans
Crane detail (lowered to 16")

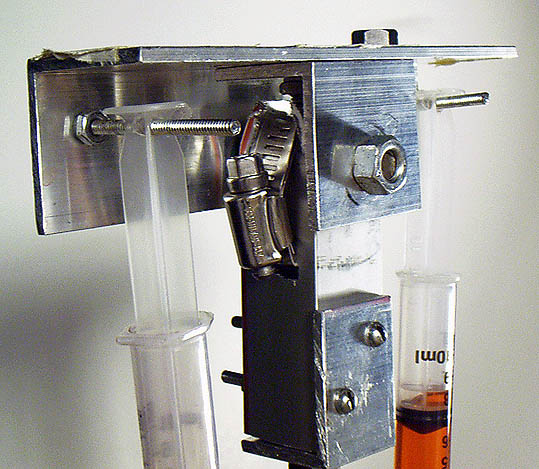

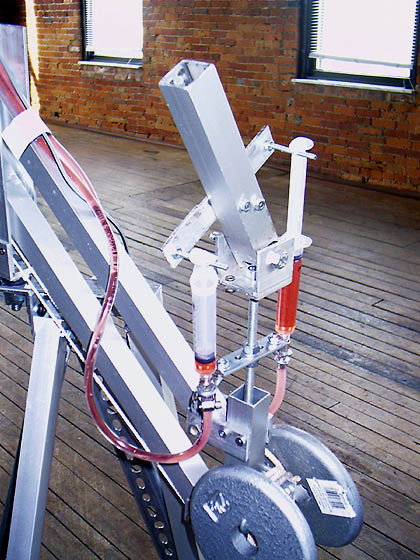

Control arm CU

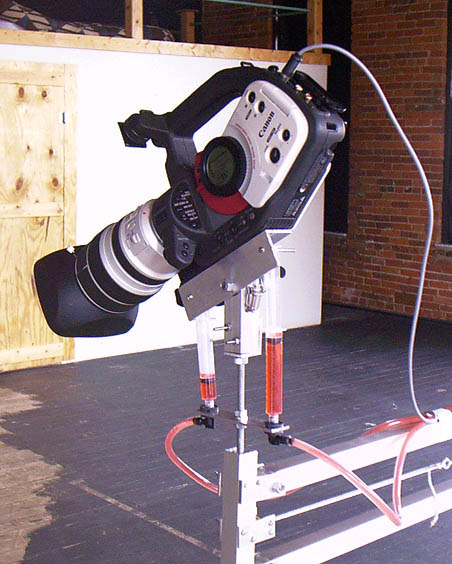

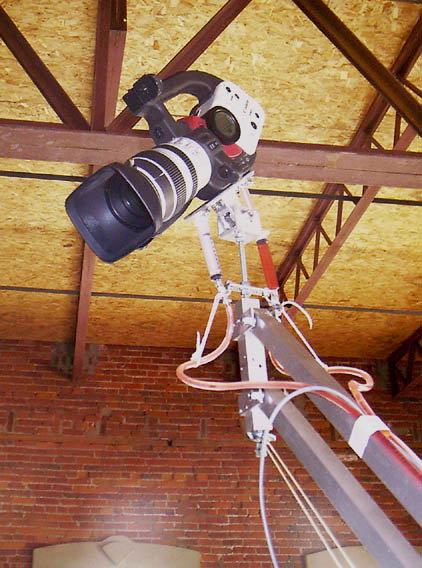

Camera elevated
Crane Extended

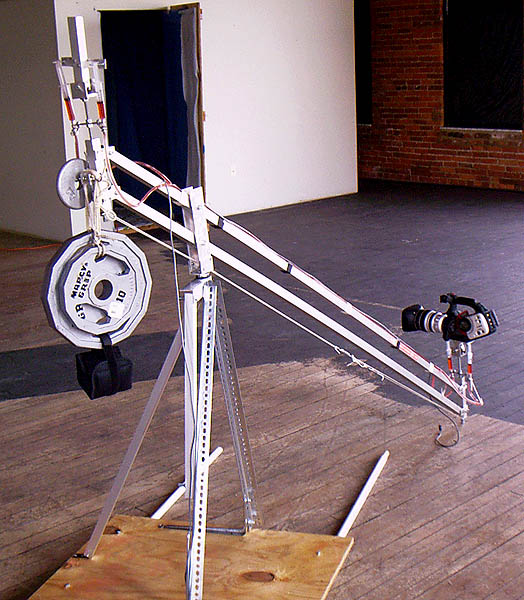

Crane lowered

PDF of Page 2

Give it time to load

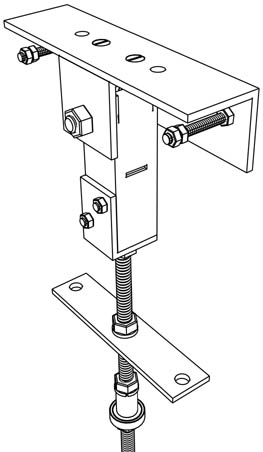

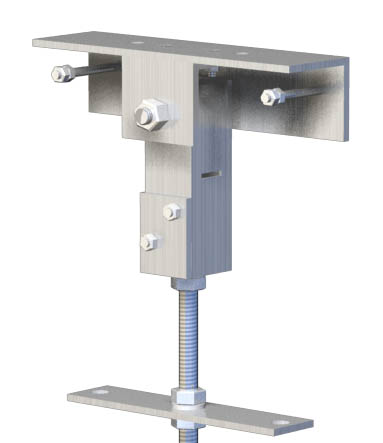

Cam Arm from animation
